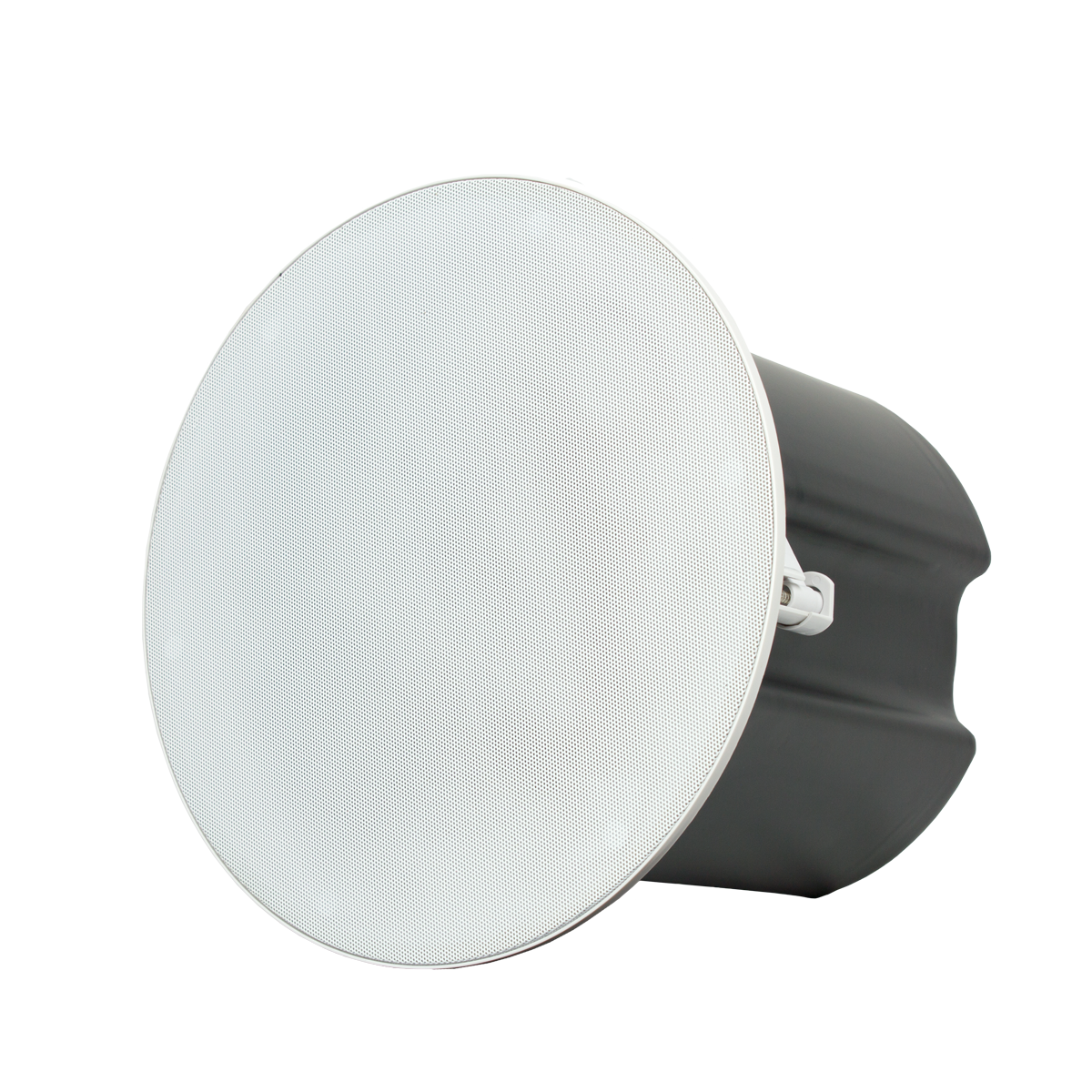

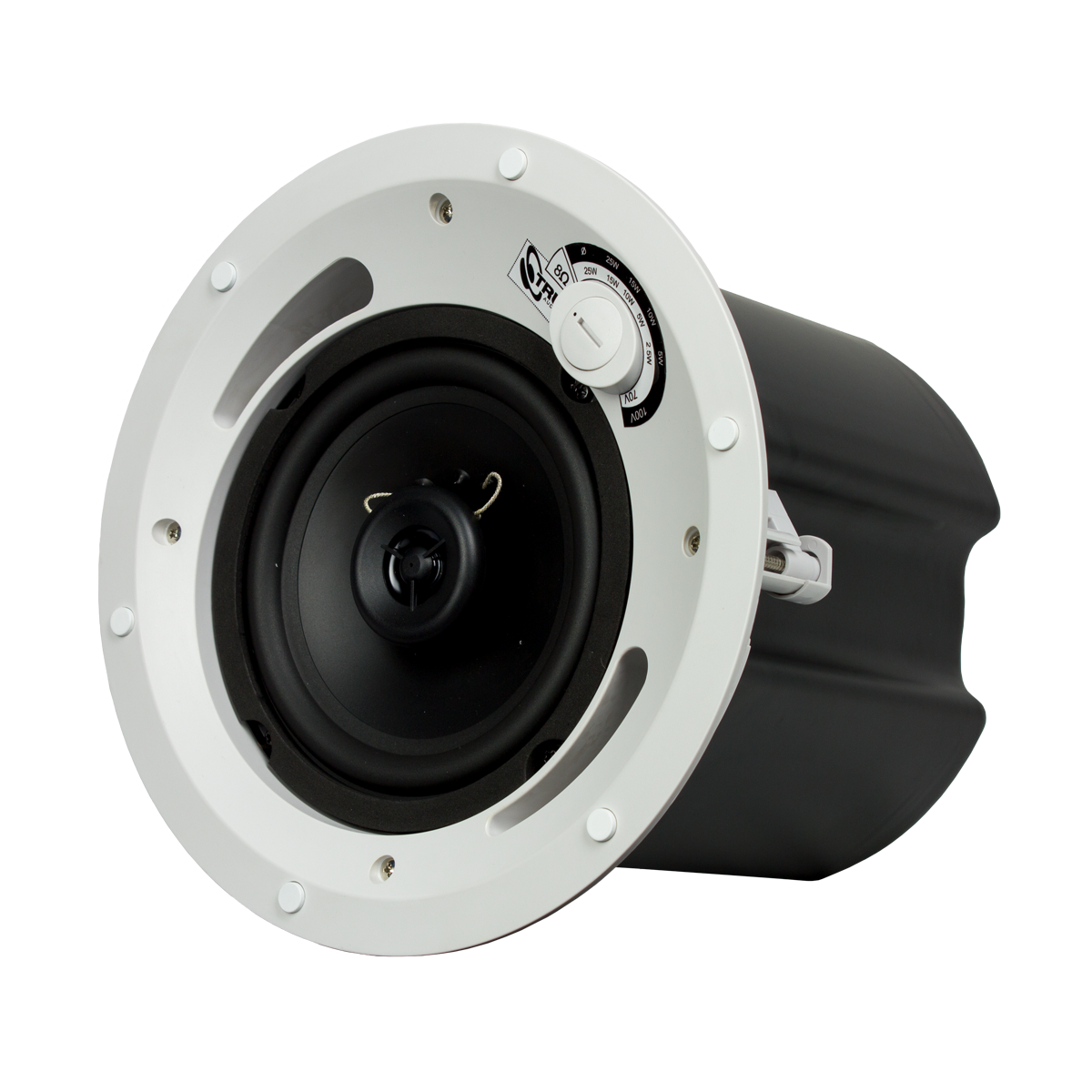

CL-70v-6UL

70 Volt/100 Volt In-Ceiling 2-Way Speaker, 6.5" Woofer, UL Listed

  • In-ceiling Commercial
  • 6.5”
  • 60W
  • Ghost-Style Gril

About the product

CL-70v-6UL

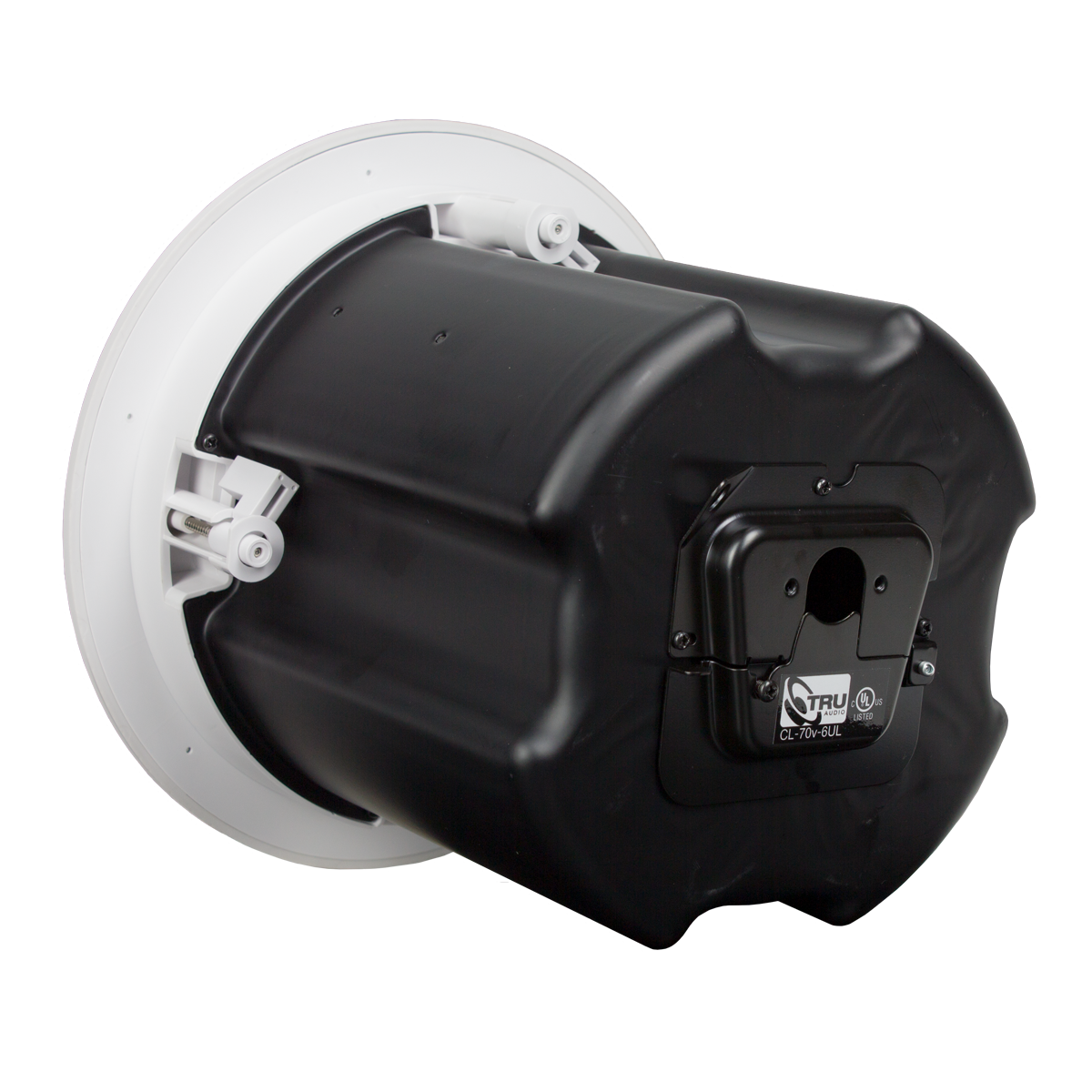

The CL-70v-6UL speaker is UL 1480 listed and meets the requirements of UL® 2043 for installation in air-handling spaces. It is engineered with wide dispersion, which is ideal for commercial applications such as restaurants, bars, stores, office buildings, hotels and classrooms. The CL-70v is designed with an industrial strength metal back can, which provides enhanced audio performance and component protection. The CL-70 also works with TruAudio’s B-70 tile bridge for drop ceilings and is humidity rated for covered outdoor venues.

Speaker Type:
In-Ceiling 70v 2-way
Tweeter:
0.75" PEI
Midrange:
Woofer:
6.5" Polypropylene
Passive Radiator:
Channels:
Power:
60 Watts 70v Taps: 2.5, 5, 10, 15, 25W 100v Taps: 5, 10, 15, 25W
Bridged Power
Grill Type:
Aluminum Mesh
Sensitivity:
88 dB
Frequency Response:
60 - 20k Hz (+/- 3dB)
Impedance:
8Ω or 70v/100v
TruGrip™
Quick Connect™
No
Certifications:
UL 1480
Inputs:
Sub Out Freq. Range
Inputs:
Sub Out Crossover:
Frequency Range:
Harmonic Distortion:
S/N Ratio:
Outputs:
Finish / Color:
Crossover:
Controls:
Warranty:
Limited Lifetime
Cutout Dimensions:
8.8" (224mm) Dia.
Finish Dimensions:
10.4" (264mm) Dia. x 9” (224mm) D

CL-70v-6UL
